WiLLstudio® TEX Post Top & Area

Modern Architectural Lighting

Flexible architectural light with post top and site/area mounting configurations.

Request a Quote

Document Downloads

Specification Sheet (.pdf)

Made in America

Quality Craftsmanship. Reputable Service + Support.

Multiple Mounting Options

Easily configurable for post top or site/area mounting.

Architectural Finish Coatings

Textured powder coat, anodizing, and custom color matching of RAL codes and architectural colors.

tex-area-line-drawing.jpg__PID:ba1dc359-db86-480c-be98-062212b5bb3f

TEX // AREA

Housing Size:
17" Medium

----

Lumen Range:
5,000 - 19,000

----

Wattage:
40W - 155W

----

Applications:
Decorative / Area / Site

tex-post-top-line-drawing.jpg__PID:c359db86-a80c-4e98-8622-12b5bb3f516b

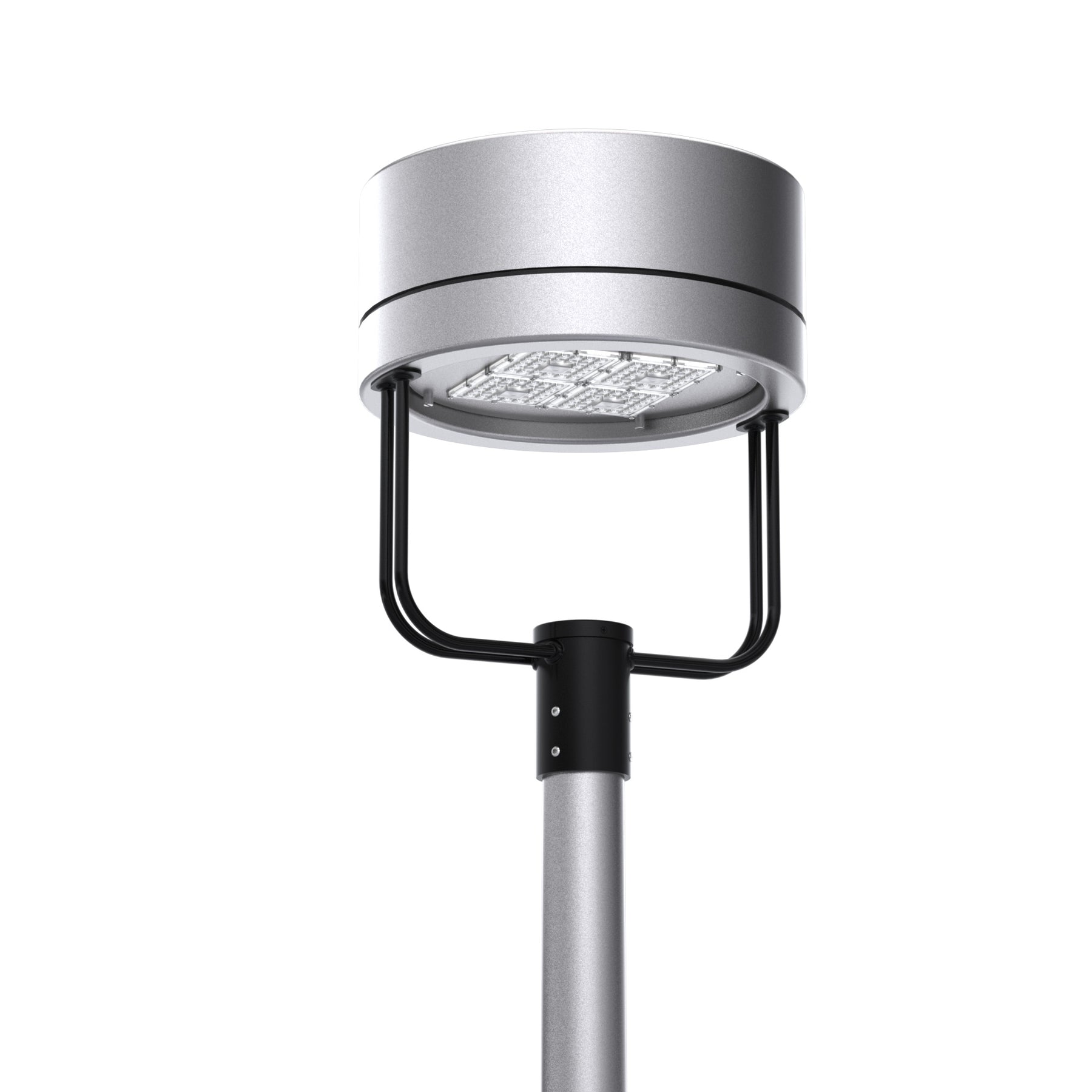

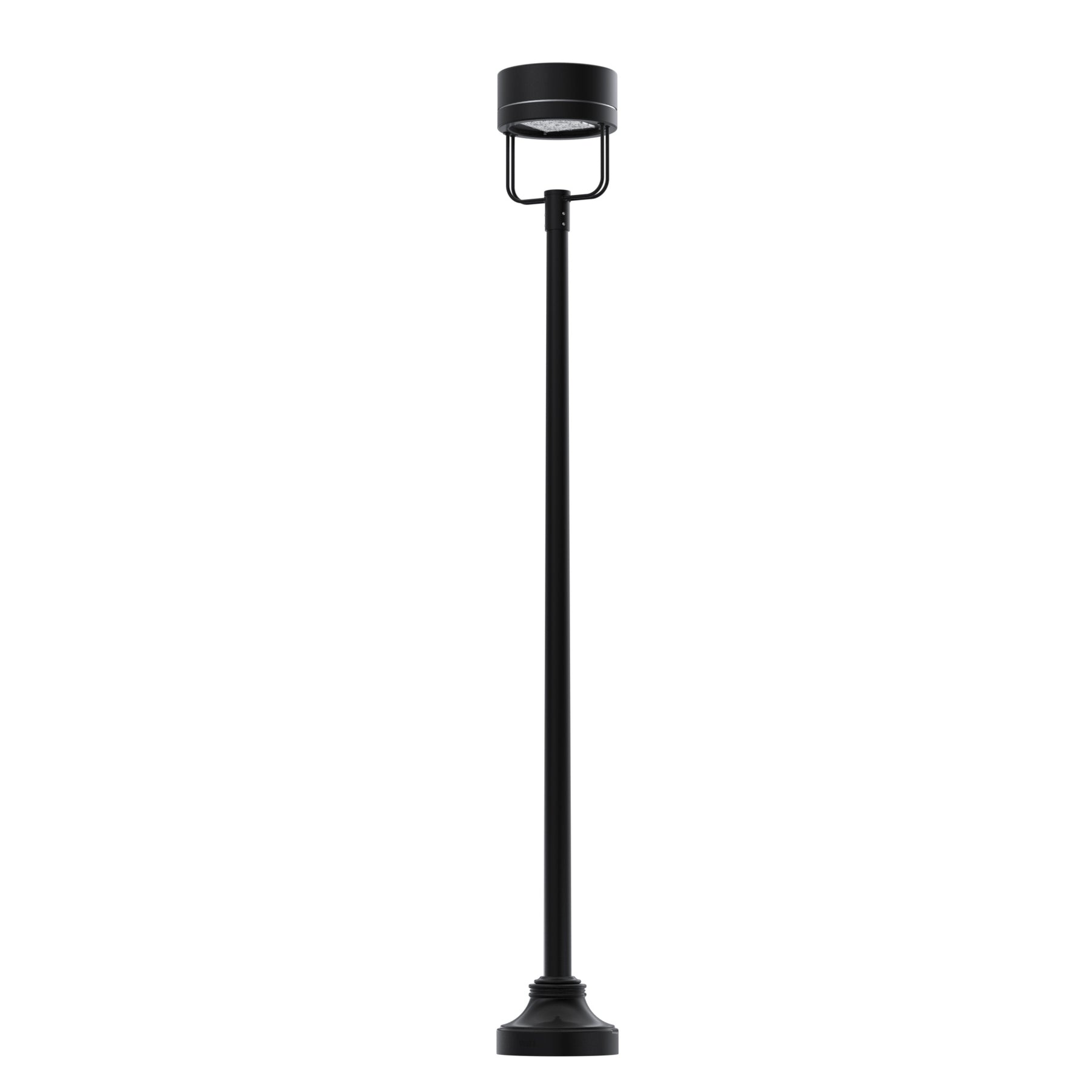

TEX // POST TOP

Housing Size:
17" Medium

----

Lumen Range:
5,000 - 19,000

----

Wattage:
40W - 155W

----

Applications:
Decorative / Area / Site

Made-to-Order //
Flexible Specs

Custom fixtures built to your specs – from finish color and LED color temp to lighting distribution, voltage, mounting, and more.

Site+Area OR Post Top //
Multiple Mounting Options

Made-to-order custom mounting brackets / arms for retrofit or new installs.

WiLLstudio® TEX Post Top & Area
WiLLstudio® TEX Post Top & Area
WiLLstudio® TEX Post Top & Area
WiLLstudio® TEX Post Top & Area
WiLLstudio® TEX Post Top & Area
WiLLstudio® TEX Post Top & Area
WiLLstudio® TEX Post Top & Area
WiLLstudio® TEX Post Top & Area
WiLLstudio® TEX Post Top & Area
WiLLstudio® TEX Post Top & Area
WiLLstudio® TEX Post Top & Area
WiLLstudio® TEX Post Top & Area
WiLLstudio® TEX Post Top & Area
WiLLstudio® TEX Post Top & Area
WiLLstudio® TEX Post Top & Area
WiLLstudio® TEX Post Top & Area

WiLLstudio® TEX Post Top & Area

WD-TEX

Specification Sheet (.pdf)

CONFIGURE YOUR DRX FIXTURE

  • For Immediate Support & Current Lead Times, Call 866-308-9455.

Warranty & Terms

WiLL Limited Product Warranty (.pdf)
WiLL Terms & Conditions of Sale (.pdf)
WiLL Anodizing Advisory (.pdf)

Product Guides

WiLL Anchor Bolt Install Guide (.pdf)
WiLL Light Pole Maintenance Guide (.pdf)
WiLL LED Lighting Maintenance Guide (.pdf)

Wind Maps

1994 AASHTO Wind Map (.pdf)
2009 AASHTO Wind Map (.pdf)
2010 FL Code 180 MPH Wind Map (.pdf)

High Wind

RSAA Ultimate 3 Second Gust Wind Ratings (.pdf)
SSAA Ultimate 3 Second Gust Wind Ratings (.pdf)
RTA AASHTO/FBC 2010 High Wind Ratings (8-25 ft.) (.pdf)
RTA AASHTO/FBC 2010 High Wind Ratings (20-50 ft.) (.pdf)

Product Forms

Fixture Drilling (.pdf)
Voltage Confirmation (.pdf)

Part Number Matrix

EX: WD-TEX-80-30-MV-5W-BK-3T

Product Family Design Lumen Output (Model = Nominal Lumens) Color Temp Voltage Distribution Mounting Finish Color
WD = WiLLstudio® TEX = Medium Housing 40 = 5,000 30 = 3000K, 70 CRI MV = 120-277V 1S = Type I Short 3T = 3.0" OD Tenon/Pole Fit BK = Black
CH = Custom 80 = 10,000 40 = 4000K, 70 CRI HV = 277-480V 2M = Type II Medium SMS = Side Mount (Square Pole or Wall) DB = Dark Bronze
115 = 15,000 50 = 5000K, 70 CRI CV = Custom 3M = Type III Medium SMR = Side Mount (Round Pole) WH = White
155 = 19,000 PCA = PC Amber (590 nm) 3W = Type III Wide CM = Custom NA = Nat Alum Silver
CW = Custom & Amber TA = True Amber (593 nm) 4M = Type IV Medium LG = Light Gray
CT = Custom 5W = 150° Type V Square SG = Slate Gray
5M = 90° Type V Medium DG = Dark Green
5N = 70° Type V Narrow DP = Dark Platinum
CD = Custom GM = Graphite Metallic
RAL = Custom RAL Match

Options & Accessories

Options Accessories
SRG27710 = 10kA Surge Suppressor (Field Replaceable), 120-277V TLPC1 = Twist-Lock Photocell, 120-277V (Not Installed) (Requires N5P Receptacle)
SRG48010 = 10kA Surge Suppressor (Field Replaceable), 347-480V TLPC4 = Twist-Lock Photocell, 347/480V (Not Installed) (Requires N5P Receptacle)

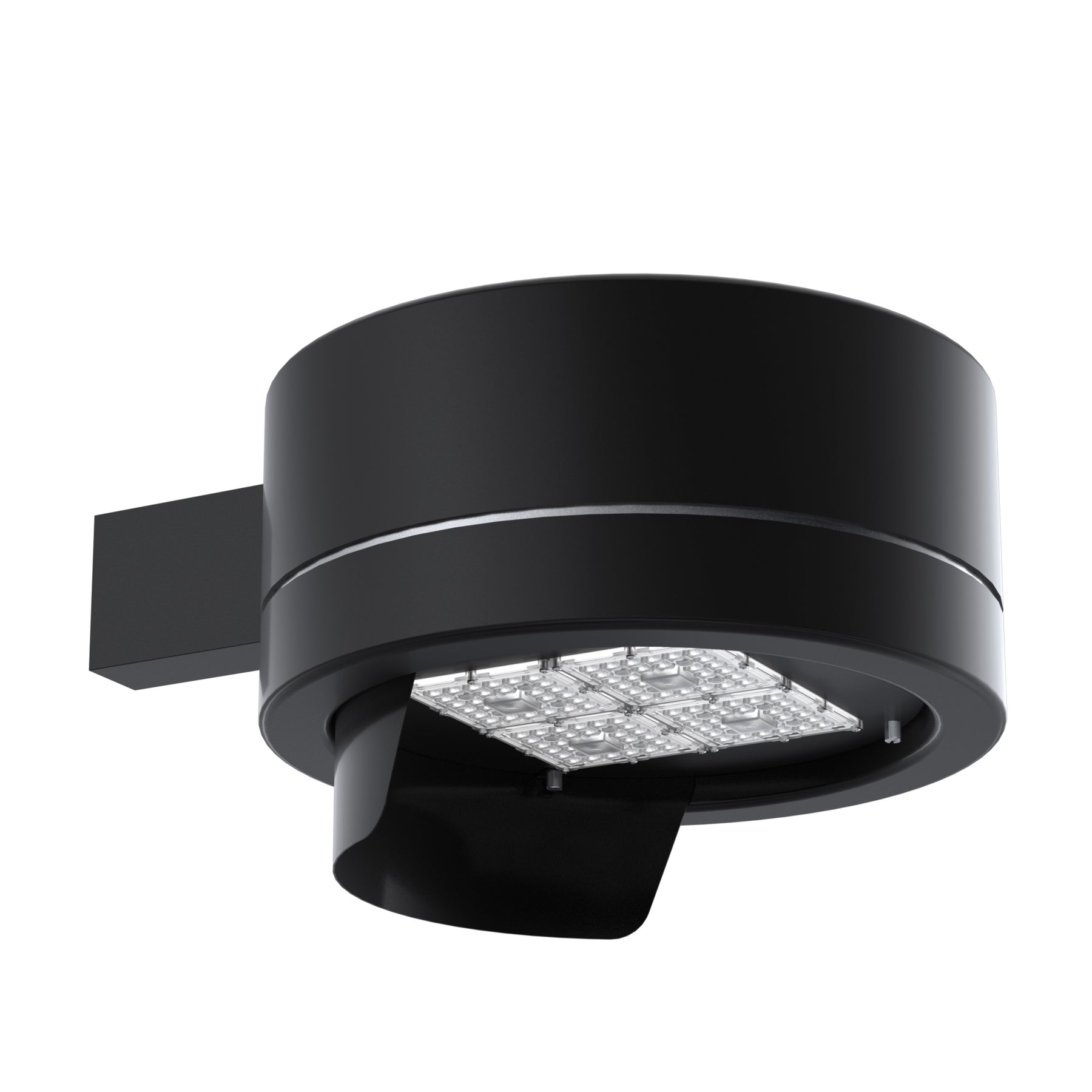

N5P = NEMA 5pin Twist-Lock Receptacle HSS-TEX = House Side Shield
MPS = Programmable Motion Sensor w/ ON/OFF + Dimming + Photocontrol, Bluetooth Settings Adjustable, maximum coverage of 100' diameter from 40' mounting height (Remote Mount Only) AFW = Area/Flood Light Wall Bracket (Black Finish) (Not Installed)
GFX = Wireless DMX Lighting Control System (Consult Factory)
GFM = Wireless Mesh Lighting Control System (Consult Factory)

Note: Custom products, configurations, options, and accessories available from factory.
