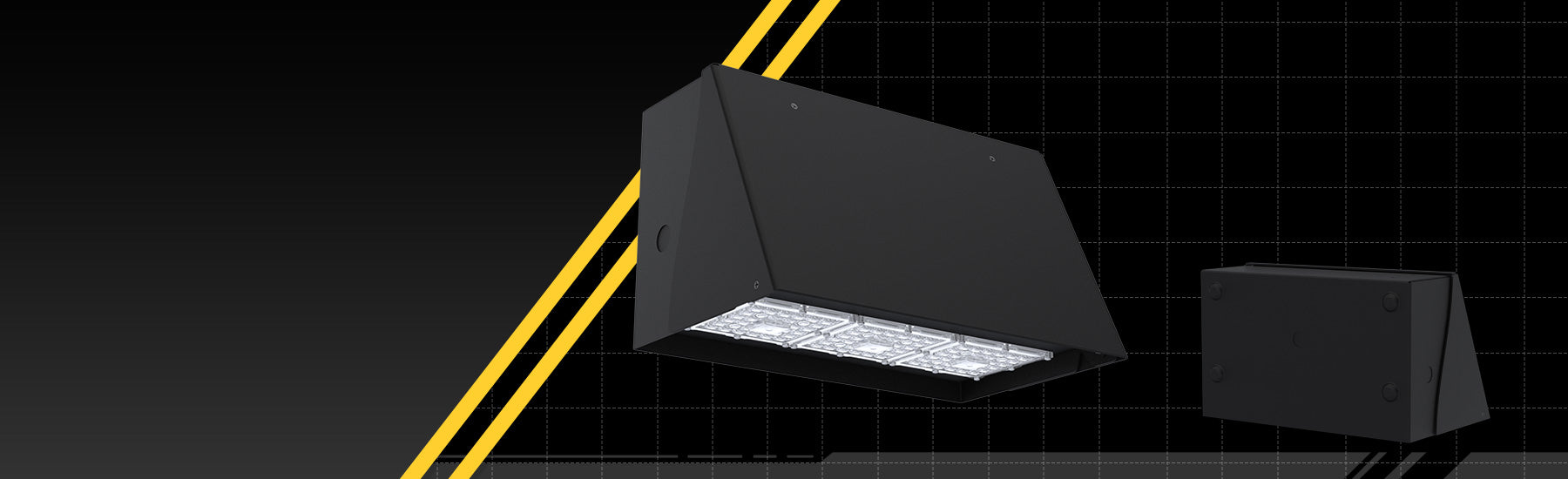

NAFCO® WCX Wall Mount

Wall Mount Area Lighting

Modern fixture design with reliable commercial-grade performance.

Request a Quote

Document Downloads

Specification Sheet (.pdf) Install Guide (.pdf) IES Files (.zip)

Made in America

Quality Craftsmanship. Reputable Service + Support.

As fast as 3-Day Shipping

Fast fulfillment. Flexible shipping. Get product installed sooner.

WCS Wall Mount Light Fixture - Dimensions

WCS // Small

Housing Size:
Small

----

Lumen Range:
6,000

----

Wattage:
45W

----

Applications:
Building Exteriors

WCM Wall Mount Light Fixture - Dimensions

WCM // Medium

Housing Size:
Medium

----

Lumen Range:
12,000 - 18,000

----

Wattage:
90W - 135W

----

Applications:
Building Exteriors

WCL Wall Mount Light Fixture - Dimensions

WCL // Large

Housing Size:
Large

----

Lumen Range:
24,000 - 30,000

----

Wattage:
180W - 225W

----

Applications:
Building Exteriors

Made-to-Order //
Flexible Specs

Custom fixtures are built to your specs – from finish color to color temp to distribution to mounting and more – while meeting industry best lead times.

Turle + Wildlife Friendly //
Amber LED lighting

Engineered to wildlife lighting standards with True Amber and PC Amber LED chip options.

Learn More
NAFCO® WCX Wall Mount

NAFCO® WCX Wall Mount

NF-WCX

Specification Sheet (.pdf) Install Guide (.pdf) IES Files (.zip)
  • For Immediate Support & Current Lead Times, Call 866-308-9455.

CONFIGURE YOUR WCX FIXTURE

Warranty & Terms

WiLL Limited Product Warranty (.pdf)
WiLL Terms & Conditions of Sale (.pdf)
WiLL Anodizing Advisory (.pdf)

Product Guides

WiLL Anchor Bolt Install Guide (.pdf)
WiLL Light Pole Maintenance Guide (.pdf)
WiLL LED Lighting Maintenance Guide (.pdf)

Wind Maps

1994 AASHTO Wind Map (.pdf)
2009 AASHTO Wind Map (.pdf)
2010 FL Code 180 MPH Wind Map (.pdf)

High Wind

RSAA Ultimate 3 Second Gust Wind Ratings (.pdf)
SSAA Ultimate 3 Second Gust Wind Ratings (.pdf)
RTA AASHTO/FBC 2010 High Wind Ratings (8-25 ft.) (.pdf)
RTA AASHTO/FBC 2010 High Wind Ratings (20-50 ft.) (.pdf)

Product Forms

Fixture Drilling (.pdf)
Voltage Confirmation (.pdf)

Part Number Matrix

EX: NF-WCM-180-50-MV-4M-BK-WM

Product Family Design Performance
(Watts = Nominal Lumens)		 Color Temp Voltage Distribution Finish Color
NF = NAFCO® WCS = Small Housing 45 = 6,000 30 = 3000K, 70 CRI MV = 120-277V 1S = Type I Short BK = Black (Standard)
WCM = Medium Housing 90 = 12,000 40 = 4000K, 70 CRI HV = 277-480V 2M = Type II Medium BZ = Bronze
WCL = Large Housing 135 = 18,000 50 = 5000K, 70 CRI CV = Custom 3M = Type III Medium WH = White
180 = 24,000 PCA = PC Amber (590 nm) 3W = Type III Wide NA = Nat Alum Silver
225 = 30,000 TA = True Amber (593 nm) 4M = Type IV Medium LG = Light Gray
CW = Custom & Amber CT = Custom 5W = 150° Type V Square SG = Slate Gray
5M = 90° Type V Medium DG = Dark Green
5N = 70° Type V Narrow DP = Dark Platinum
5VN = 30° Type V Very Narrow GM = Graphite Metallic
CD = Custom RAL = Custom RAL Match

Options & Accessories

Option Accessories
SRG27710 = 10kA Surge Suppressor (Field Replaceable), 120-277V BPC1 = Button Photocontrol, 120-277V
SRG48010 = 10kA Surge Suppressor (Field Replaceable), 347-480V BPC3 = Button Photocontrol, 347V
N5P = NEMA 5pin Twist-Lock Receptacle BPC4 = Button Photocontrol, 480V
MPS = Programmable Motion Sensor w/ ON/OFF + Dimming + Photocontrol, Bluetooth Settings Adjustable, maximum coverage of 100’ diameter from 40’ mounting height TLPC1 = Twist-Lock Photocell, 120-277V (Not Installed)
EB12FI = 1500 lm 90 min Emergency Battery Backup, 0°C to 40°C Ambient Operating Temp, 120-277V Models Only (Consult Factory) TLPC4 = Twist-Lock Photocell, 347/480V (Not Installed)
EB12FIC = 1500 lm 90 min Cold Weather Emergency Battery Backup, -20°C to 40°C Ambient Operating Temp, 120-277V Models Only (Consult GFX = Wireless DMX Lighting Control System (Consult Factory)
GFM = Wireless Mesh Lighting Control System (Consult Factory)

Note: Custom products, configurations, options, and accessories available from factory.
