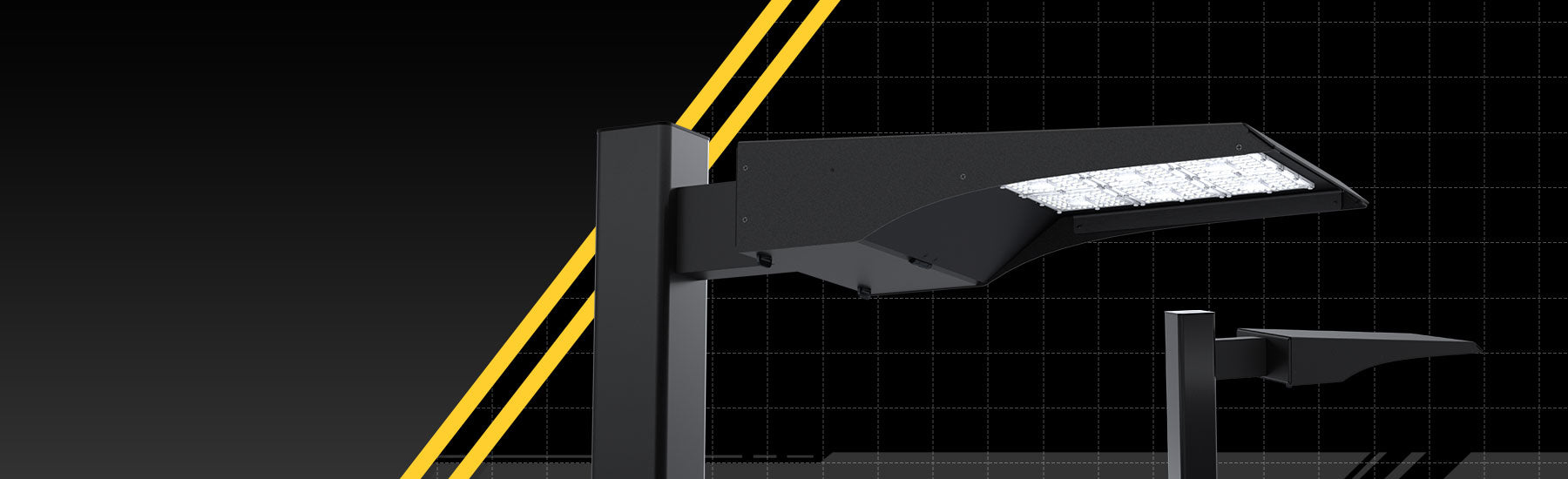

NAFCO® SLX SLIM AREA

LOW-PROFILE AREA LIGHTING

Modern fixture design with reliable commercial-grade performance.

Request a Quote

Made in America

Quality Craftsmanship. Reputable Service + Support.

As fast as 3-Day Shipping

Fast fulfillment. Flexible shipping. Get product installed sooner.

Light Poles + Light Fixtures

Source all of your pole lighting products in one place.

SLS Slim Light Fixture - Dimensions

SLS // Small

Housing Size:
Small

----

Lumen Range:
6,000 - 27,000

----

Wattage:
45W - 180W

----

Applications:
Tennis & Sport Courts
Flood & Area Lighting
Parking Lots & Dealerships

SLM Slim Light Fixture - Dimensions

SLM // Medium

Housing Size:
Medium

----

Lumen Range:
28,000 - 38,000

----

Wattage:
250W

----

Applications:
Tennis & Sport Courts
Flood & Area Lighting
Parking Lots & Dealerships

SLL Slim Light Fixture - Dimensions

SLL // Large

Housing Size:
Large

----

Lumen Range:
38,000 - 48,000

----

Wattage:
330W

----

Applications:
Tennis & Sport Courts
Flood & Area Lighting
Parking Lots & Dealerships

Made-to-Order //
Flexible Specs

Custom fixtures are built to your specs – from finish color to color temp to distribution to mounting and more – while meeting industry best lead times.

Turtle + Wildlife Friendly //
Amber LED lighting

Engineered to wildlife lighting standards with True Amber and PC Amber LED chip options.

NAFCO SLX Slim LED Light Fixture with Arm Mount

NAFCO® SLX SLIM LED LIGHTING

  • For Immediate Support & Current Lead Times, Call 866-308-9455.

Configure your SLX Fixture

Part Number Matrix

EX: NF-SLM-250-50-MV-5M-BK-6S

Product Family Design Performance
(Watts = Nominal Lumens)
Color Temp Voltage Distribution Finish Color
NF = NAFCO® SLS = Small Housing (Area/Flood) 45 = 6,000 30 = 3000K, 70 CRI MV = 120-277V 1S = Type I Short BK = Black (Standard)
SLM = Medium Housing (Area/Flood) 90 = 12,000 40 = 4000K, 70 CRI HV = 277-480V 2M = Type II Medium BZ = Bronze
SLL = Large Housing (Area/Flood) 135 = 18,000 50 = 5000K, 70 CRI CV = Custom 3M = Type III Medium WH = White
SLSR = Small Housing (Roadway)* 180 = 24,000 PCA = PC Amber (590 nm) 3W = Type III Wide NA = Nat Alum Silver
SLMR = Medium Housing (Roadway)* 225 = 30,000 TA = True Amber (593 nm) 4M = Type IV Medium LG = Light Gray
SLLR = Large Housing (Roadway)* 250 = 36,000 CT = Custom 5W = 150° Type V Square SG = Slate Gray
330 = 47,000 5M = 90° Type V Medium DG = Dark Green
CW = Custom & Amber 5N = 70° Type V Narrow DP = Dark Platinum
5VN = 30° Type V Very Narrow GM = Graphite Metallic
CD = Custom RAL = Custom RAL Match

*Includes Internal 1.5 - 2.38” OD Mast Arm Mount

Options & Accessories

Mounting Option Option Accessories
6S = 6" Arm (Square Pole) WHP3NP = 2’ Cord w/o Plug, Stripped Pigtail SRG27710 = 10kA Surge Suppressor (Field Replaceable), 120-277V TLPC1 = Twist-Lock Photocell, 120-277V (Not Installed)
6R = 6" Arm (Round Pole) WHP7NP = 6’ Cord w/o Plug, Stripped Pigtail SRG48010 = 10kA Surge Suppressor (Field Replaceable), 347-480V TLPC4 = Twist-Lock Photocell, 347/480V (Not Installed)
10S = 10" Arm (Square Pole) WHP11NP = 10’ Cord w/o Plug, Stripped Pigtail BPC1 = Button Photocontrol, 120-277V HSS-SLX = SLX House Side Shield
10R = 10" Arm (Round Pole) BPC3 = Button Photocontrol, 347V TCAA = Tennis Court Davit Adapter (Not Installed)
SF = 2.38" OD Slipfitter BPC4 = Button Photocontrol, 480V AFW = Area/Flood Light Wall Bracket (Black Finish) (Not Installed)
TR = Trunnion Yoke N5P = NEMA 5pin Twist-Lock Receptacle GFX = Wireless DMX Lighting Control System (Consult Factory)
CM = Custom MPS = Programmable Motion Sensor w/ ON/OFF + Dimming + Photocontrol, Bluetooth Settings Adjustable, maximum coverage of 100’ diameter from 40’ mounting height GFM = Wireless Mesh Lighting Control System (Consult Factory)
EB12FI = 1500 lm 90 min Emergency Battery Backup, 0°C to 40°C Ambient Operating Temp, 120-277V Models Only (Consult Factory)
EB12FIC = 1500 lm 90 min Cold Weather Emergency Battery Backup, -20°C to 40°C Ambient Operating Temp, 120-277V Models Only (Consult Factory)

Note: Custom products, configurations, options, and accessories available from factory.
Note: Visit designlights.org - select configurations are DLC qualified.
