WiLLSport® GTX High-Output Area

HIGH-OUTPUT AREA LIGHTING

Modern fixture design with reliable high-output performance.

Request a Quote

Document Downloads

Specification Sheet (.pdf) Install Guide (.pdf) IES Files (.zip) Sports Court Brochure (.pdf)

Made in America

Quality Craftsmanship. Reputable Service + Support.

Optimal glare control

Reduce glare + light spill with lower B.U.G. ratings.

Light Poles + Light Fixtures

Source all of your pole lighting products in one place.

GT2 Light Fixture - Dimensions

GT2 // Small

Housing Size:
Small

----

Lumen Range:
25,000

----

Wattage:
175W

----

Applications:
Tennis & Sport Courts
High-Output Flood & Area Lighting
Parking Lots & Dealerships

GT4 Light Fixture - Dimensions

GT4 // Medium

Housing Size:
Medium

----

Lumen Range:
50,000

----

Wattage:
350W

----

Applications:
Tennis & Sport Courts
High-Output Flood & Area Lighting
Parking Lots & Dealerships

GT6 Light Fixture - Dimensions

GT6 // Large

Housing Size:
Large

----

Lumen Range:
80,000

----

Wattage:
530W

----

Applications:
Tennis & Sport Courts
High-Output Flood & Area Lighting
Parking Lots & Dealerships

Sports Court Lighting //
Pickleball & Tennis

Uniform Lighting - Engineered to Control Light Spill & Glare.

Custom Mounting Solutions //
Simplify Your Install

Retrofit & upgrade existing facility technology.

Made-to-Order //
Flexible Specs

Custom fixtures built to your specs – from finish color and LED color temp to lighting distribution, voltage, mounting, and more – while meeting industry best lead times.

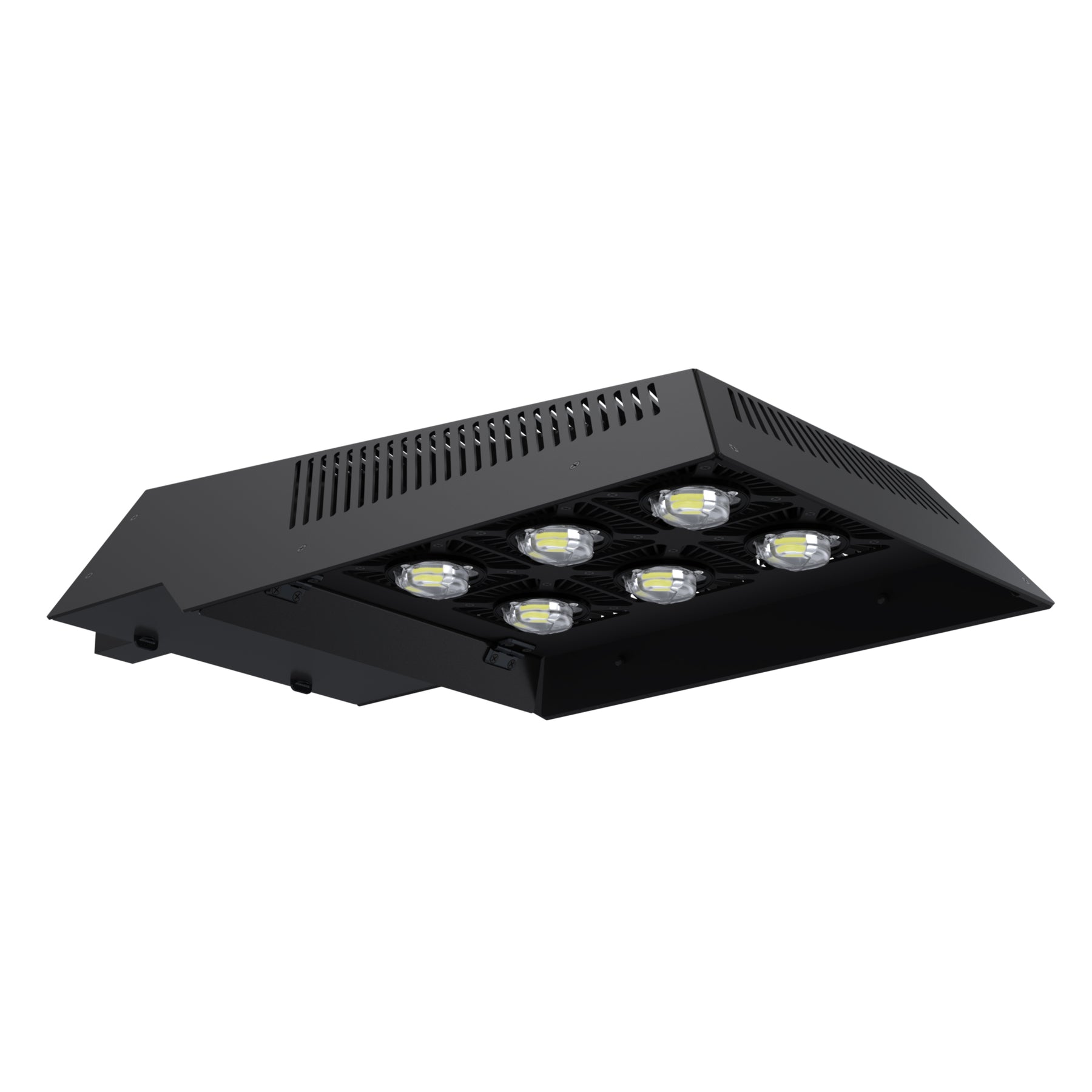

WiLLsport GT6 High-Output LED Area Light

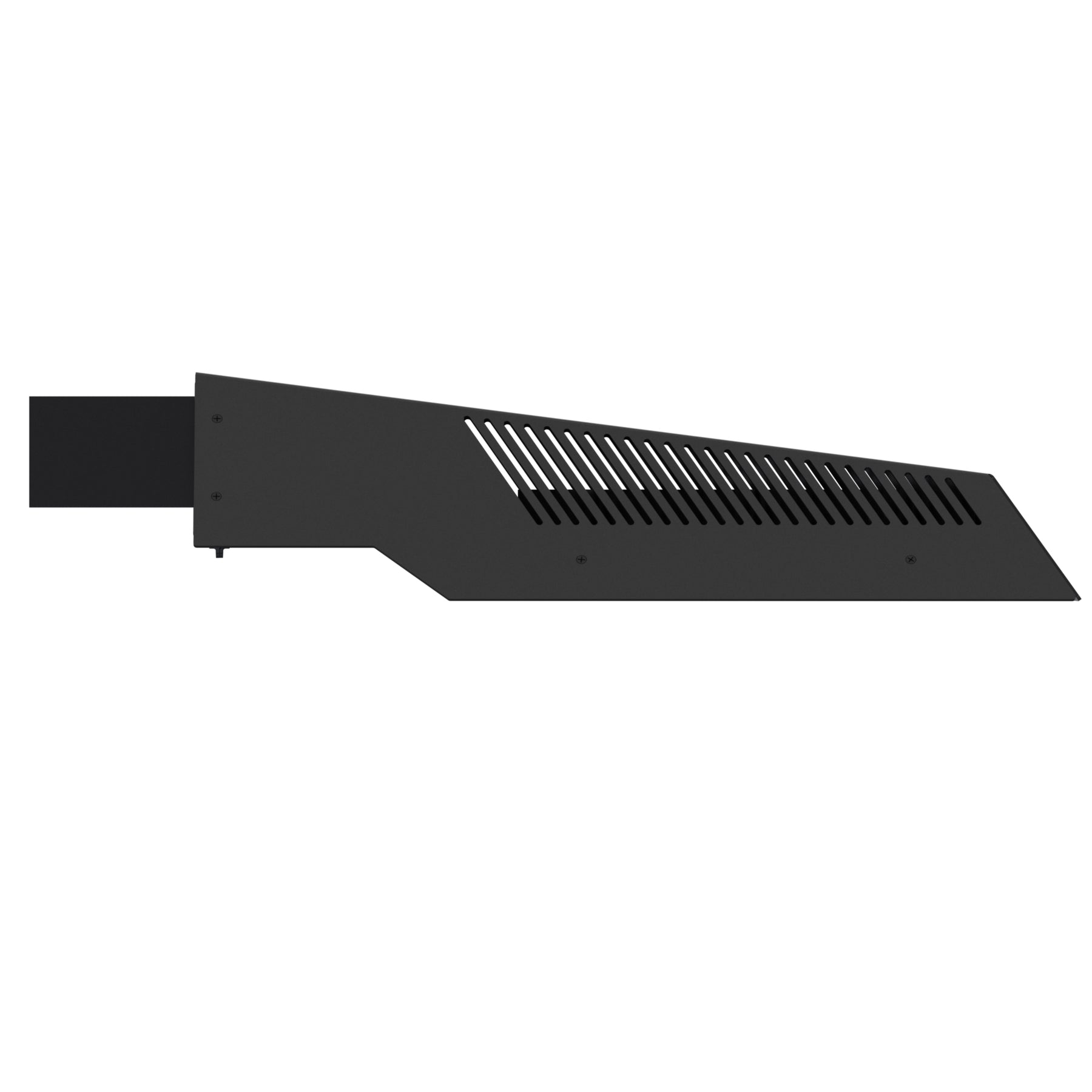

WiLLsport GTX side profile view

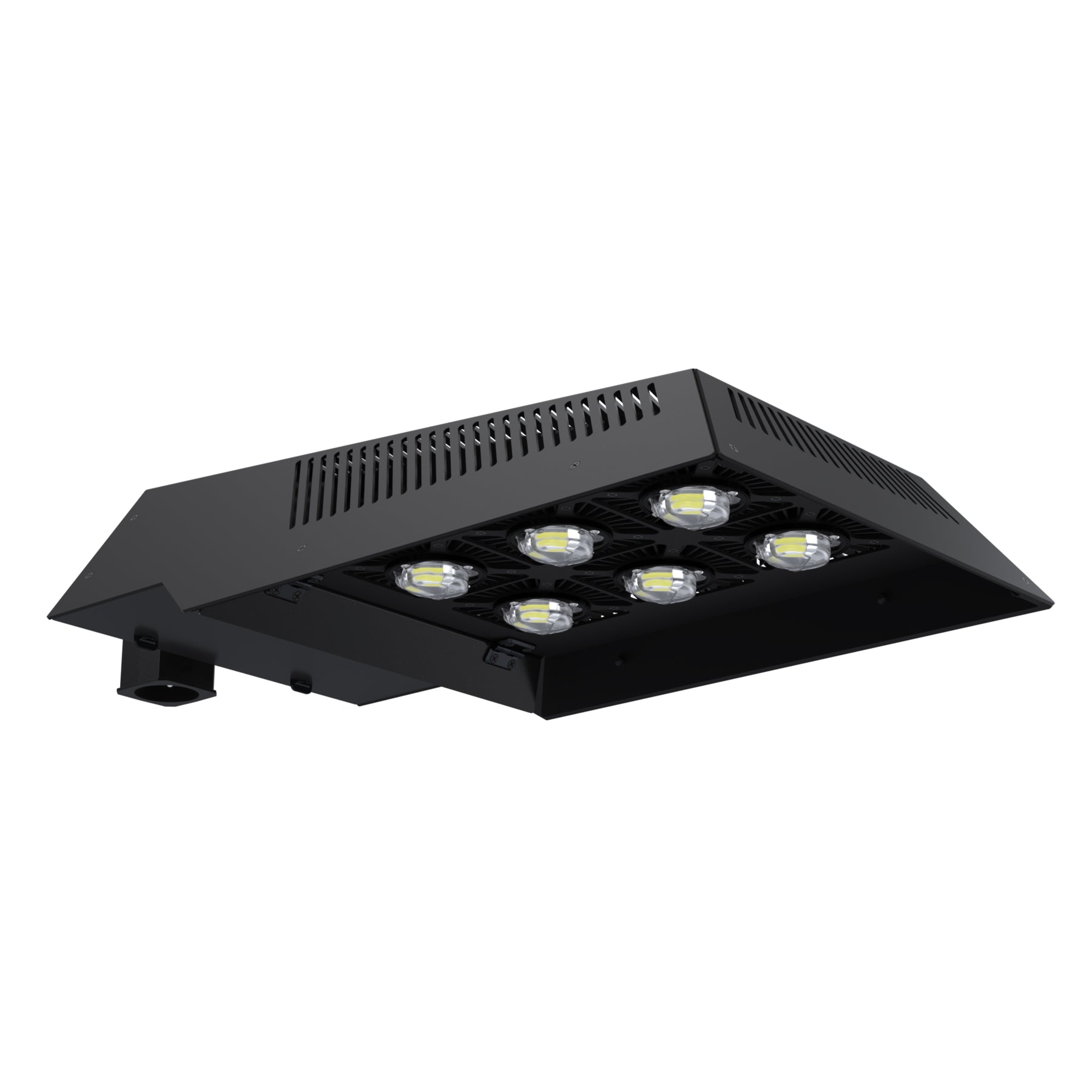

WiLLsport GT6 High-Output LED Area Light with Slipfitter Mount
WiLLsport GT6 High-Output LED Area Light with Trunnion Mount
WiLLsport GT6 High-Output LED Area Light
WiLLsport GTX side profile view
WiLLsport GT6 High-Output LED Area Light with Slipfitter Mount
WiLLsport GT6 High-Output LED Area Light with Trunnion Mount

WILLsport® GTX High-Output Area

WS-GTX

Specification Sheet (.pdf) Install Guide (.pdf) IES Files (.zip) Sports Court Brochure (.pdf)
  • For Immediate Support & Current Lead Times, Call 866-308-9455.

CONFIGURE YOUR GTX FIXTURE

Warranty & Terms

WiLL Limited Product Warranty (.pdf)
WiLL Terms & Conditions of Sale (.pdf)
WiLL Anodizing Advisory (.pdf)

Product Guides

WiLL Anchor Bolt Install Guide (.pdf)
WiLL Light Pole Maintenance Guide (.pdf)
WiLL LED Lighting Maintenance Guide (.pdf)

Wind Maps

1994 AASHTO Wind Map (.pdf)
2009 AASHTO Wind Map (.pdf)
2010 FL Code 180 MPH Wind Map (.pdf)

High Wind

RSAA Ultimate 3 Second Gust Wind Ratings (.pdf)
SSAA Ultimate 3 Second Gust Wind Ratings (.pdf)
RTA AASHTO/FBC 2010 High Wind Ratings (8-25 ft.) (.pdf)
RTA AASHTO/FBC 2010 High Wind Ratings (20-50 ft.) (.pdf)

Product Forms

Fixture Drilling (.pdf)
Voltage Confirmation (.pdf)

Part Number Matrix

EX: WS-GT4-350-50-MV-4-BK-6S-WHP3NP-HSS4

Product Family Design Performance
(Watts = Nominal Lumens)		 Color Temp Voltage Distribution Finish Color
WS = WiLLsport® GT2 = 2 Engine Chassis 175 = 25,000 27 = 2700K, 70 CRI MV = 120-277V 4 = Type IV BK = Black (Standard)
GT4 = 4 Engine Chassis 350 = 50,000 30 = 3000K, 70 CRI HV = 277-480V 5W = 150° Type V Square BZ = Bronze
GT6 = 6 Engine Chassis 530 = 80,000 40 = 4000K, 70 CRI CV = Custom 5M = 100° Type V Flood WH = White
CW = Custom & Amber 50 = 5000K, 70 CRI 70 = 70° Type V Flood NA = Nat Alum Silver
57 = 5700K, 70 CRI CD = Custom LG = Light Gray
578 = 5700K, 80 CRI SG = Slate Gray
PCA = PC Amber (590 nm) DG = Dark Green
TA = True Amber (593 nm) DP = Dark Platinum
CT = Custom GM = Graphite Metallic
RAL = Custom RAL Match

Options & Accessories

Mounting Option Option Accessories
6S = 6" Arm (Square Pole) WHP3NP = 2’ Cord w/o Plug, Stripped Pigtail SRG27720 = 20kA Surge Suppressor (Field Replaceable), 120-277V TLPC1 = Twist-Lock Photocell, 120-277V (Not Installed)
6R = 6" Arm (Round Pole) WHP7NP = 6’ Cord w/o Plug, Stripped Pigtail SRG48020 = 20kA Surge Suppressor (Field Replaceable), 347-480V TLPC4 = Twist-Lock Photocell, 347/480V (Not Installed)
10S = 10" Arm (Square Pole) WHP11NP = 10’ Cord w/o Plug, Stripped Pigtail N5P = NEMA 5pin Twist-Lock Receptacle HSS4-2/4/6 = House Side Shield Type IV (Wattage Specific)
10R = 10" Arm (Round Pole) WHP15NP = 14’ Cord w/o Plug, Stripped Pigtail MPSGT = Programmable Motion Sensor w/ ON/OFF + Dimming + Photocontrol, Bluetooth Settings Adjustable, maximum coverage of 100’ diameter from 40’ mounting height HSS5-2/4/6 = House Side Shield Type V (Wattage Specific)
SF = 2.38" OD Slipfitter TCAA = Tennis Court Davit Adapter (Not Installed)
TR = Trunnion Yoke GFX = Wireless DMX Lighting Control System (Consult Factory)
CM = Custom GFM = Wireless Mesh Lighting Control System (Consult Factory)

Note: Custom products, configurations, options, and accessories available from factory.
