WiLLSPORT® HDX High Bay & Sports

VERSATILE HIGH-OUTPUT LIGHTING

Modular Expandability. Wet / Dry / Damp Location Options. Indoor and Outdoor Applications.

Request a Quote

Document Downloads

Specification Sheet (.pdf) Install Guide (.pdf) IES Files (.zip)

Made in America

Quality Craftsmanship. Reputable Service + Support.

High-Output Applications

Output options over 95,000 lumens.

WIRELESS CONTROLS READY

Put the power in the hands of facilities managers with the addition of wireless controls to your LED lighting package.

HD2 High Bay - Dimensions

HD2

Housing Size:
7"

----

Lumen Range:
24,000 - 32,000

----

Wattage:
160W - 230W

----

Applications:
Dry/damp high and low bay applications

HD4 High Bay - Dimensions

HD4

Housing Size:
14"

----

Lumen Range:
49,000 - 64,000

----

Wattage:
320W - 460W

----

Applications:
Dry/damp high and low bay applications

HD6 High Bay - Dimensions

HD6

Housing Size:
21"

----

Lumen Range:
74,000 - 96,000

----

Wattage:
480W - 690W

----

Applications:
Dry/damp high and low bay applications

Made-to-Order //
Flexible Specs

Custom fixtures built to your specs – from finish color and LED color temp to lighting distribution, voltage, mounting, and more – while meeting industry best lead times.

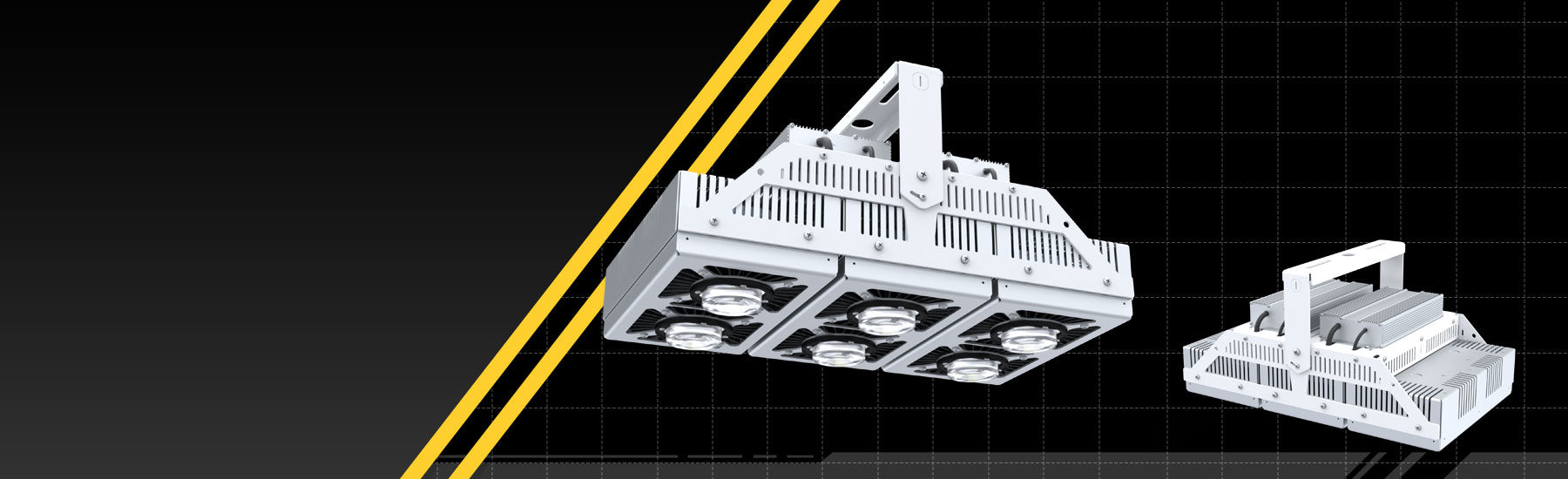

WiLLsport HDX High Bay and Sports LED Light Fixture with Harp Mount
WiLLsport HDX High Bay and Sports LED Light Fixture - Up Lighting Mount
WiLLsport HDX High Bay and Sports LED Light Fixture with Glare Grid
WiLLsport HDX High Bay and Sports LED Light Fixture with Shroud
WiLLsport HDX High Bay and Sports LED Light Fixture with Harp Mount
WiLLsport HDX High Bay and Sports LED Light Fixture - Up Lighting Mount
WiLLsport HDX High Bay and Sports LED Light Fixture with Glare Grid
WiLLsport HDX High Bay and Sports LED Light Fixture with Shroud

WiLLsport® HDX High Bay & Sports

WS-HDX

Specification Sheet (.pdf) Install Guide (.pdf) IES Files (.zip)
  • For Immediate Support & Current Lead Times, Call 866-308-9455.

CONFIGURE YOUR HDX FIXTURE

Warranty & Terms

WiLL Limited Product Warranty (.pdf)
WiLL Terms & Conditions of Sale (.pdf)
WiLL Anodizing Advisory (.pdf)

Product Guides

WiLL Anchor Bolt Install Guide (.pdf)
WiLL Light Pole Maintenance Guide (.pdf)
WiLL LED Lighting Maintenance Guide (.pdf)

Wind Maps

1994 AASHTO Wind Map (.pdf)
2009 AASHTO Wind Map (.pdf)
2010 FL Code 180 MPH Wind Map (.pdf)

High Wind

RSAA Ultimate 3 Second Gust Wind Ratings (.pdf)
SSAA Ultimate 3 Second Gust Wind Ratings (.pdf)
RTA AASHTO/FBC 2010 High Wind Ratings (8-25 ft.) (.pdf)
RTA AASHTO/FBC 2010 High Wind Ratings (20-50 ft.) (.pdf)

Product Forms

Fixture Drilling (.pdf)
Voltage Confirmation (.pdf)

Part Number Matrix

EX: WS-HD6-690-50-MV-5M-SAWH-YT10-WHP7NP

Product Family Design Performance
(Watts = Nominal Lumens)		 Color Temp Voltage Distribution Finish Color
WS = WiLLsport® HD2 = 2 Engine Chassis
(Dry/Damp Location)		 160 = 24,000 27 = 2700K, 70 CRI MV = 120-277V 5W = 150° Square SAWH = Rugged Silver Anodized + Painted White (Standard)
HD4 = 4 Engine Chassis
(Dry/Damp Location)		 230 = 32,000 30 = 3000K, 70 CRI HV = 277-480V 5M = 100° Round RAL = Custom Match
HD6 = 6 Engine Chassis
(Dry/Damp Location)		 320 = 49,000 40 = 4000K, 70 CRI CV = Custom 70 = 70° Round
HD2W = 2 Engine Chassis
(Wet Location)		 460 = 64,000 50 = 5000K, 70 CRI 45 = 45° Round
HD4W = 4 Engine Chassis
(Wet Location)		 480 = 74,000 57 = 5700K, 70 CRI 5N = 25° Round
HD6W = 6 Engine Chassis
(Wet Location)		 690 = 96,000 578 = 5700K, 80 CRI CD = Custom
CH = Custom 640 = 99,000 PCA = PC Amber (590 nm)
  920 = 128,000 TA = True Amber (593 nm)
CW = Custom CT = Custom

Options & Accessories

Mounting Option Option Accessories
YT10 = 10’ Universal Cable Suspension Kit WHP3NP = 2’ Cord w/o Plug, Stripped Pigtail SRG277HD - Secondary Surge Suppressor (Field Replaceable), 120-277V WGHD-2/4/6/8 = HDX Wireguard (Common for Uplights, Wattage Specific)
HRPHD = Mounting Harp/Yoke WHP7NP = 6’ Cord w/o Plug, Stripped Pigtail SRG480HD - Secondary Surge Suppressor (Field Replaceable), 347-480V LHH1 = Universal High Bay Hang Hook
RMB = Rod Mount Side Brackets WHP11NP = 10’ Cord w/o Plug, Stripped Pigtail MPS = Programmable Motion Sensor w/ ON/OFF + Dimming + Photocontrol, Bluetooth Settings Adjustable, Maximum Coverage of 100’ Diameter from 40’ Mounting Height SRD-2/4/6/8 = Recessed Light Engine Shroud (Wattage Specific)
CM = Custom WHP15NP = 14’ Cord w/o Plug, Stripped Pigtail EB12RM = 1500 lm 90 min Emergency Battery Backup, 0°C to 50°C Ambient Operating Temp, 120-277V Models Only (Consult Factory) (Remote Mount) GRL-2/4/6/8 = Glare Reduction Louvers (Wattage Specific) (Requires Above SRDX)
NAT = Natatorium Application (Wet Rated, 316 Stainless Hardware, Anti-Galvanic Corrosion Paste, IP67 Silicone LED Module, Anodized Aluminum Chassis) EB12RMC = 1500 lm 90 min Cold Weather Emergency Battery Backup, -20°C to 50°C Ambient Operating Temp, 120-277V Models Only (Consult Factory) (Remote Mount) CH = Safety Chain (Common for Arenas)
GFX = Wireless DMX Lighting Control System (Consult Factory)
GFM = Wireless Mesh Lighting Control System (Consult Factory)

Note: Custom products, configurations, options, and accessories available from factory.
