Name: WiLLstudio™ MVX Coach
Brand: WiLL-brands
SKU: WD-MVX
Availability: InStock

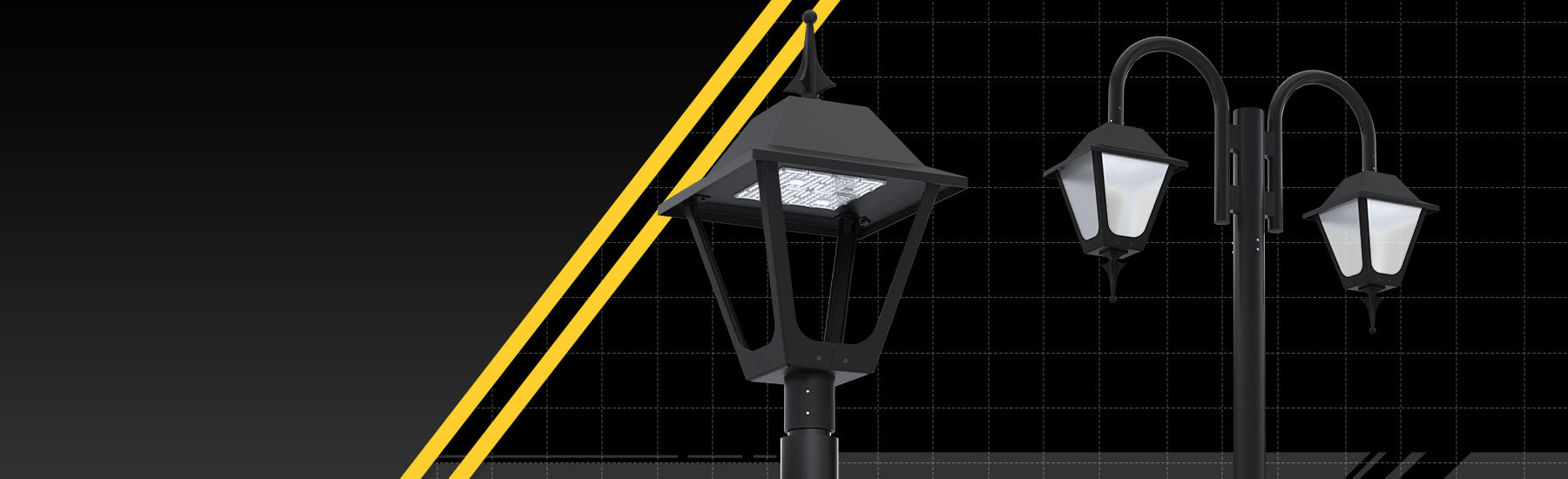

WiLLstudio™ MVX Coach

Architectural Post Top Lighting

Traditional coach fixture design for outdoor architectural applications.

Quality Craftsmanship. Reputable Service + Support.

Made to order custom mounting brackets / arms for retrofit or new installs.

Textured powder coat, anodizing, and custom color matching of RAL codes and architectural colors.

Housing Size:
19"

----

Lumen Range:
6,000 - 22,000

----

Wattage:
45W - 180W

----

Applications:
Area / Site

Made-to-Order //

Flexible Specs

Custom fixtures built to your specs – from finish color and LED color temp to lighting distribution, voltage, mounting, and more.

Custom-Made

Brackets & Arms

Made-to-order custom mounting brackets / arms for retrofit or new installs.

EX: WD-MVX-80-30-MV-5W-BK-3T-SRG27710

Product Family	Design	Performance (Watts = Nominal Lumens)	Color Temp	Voltage	Distribution	Mounting	Finish Color
WD = WiLLstudio™	MVX = Medium Housing	40 = 6,000	30 = 3000K, 70 CRI	MV = 120-277V	1S = Type I Short	3T = 3.0" OD Tenon/Pole Fit	BK = Black
	CH = Custom	80 = 12,000	40 = 4000K, 70 CRI	HV = 277-480V	2M = Type II Medium	PM = Pendant Mount	BZ = Bronze
		115 = 18,000	50 = 5000K, 70 CRI	CV = Custom	3M = Type III Medium	CM = Custom	WH = White
		155 = 22,000	PCA = PC Amber (590 nm)		3W = Type III Wide		NA = Nat Alum Silver
		CW = Custom & Amber	TA = True Amber (593 nm)		4M = Type IV Medium		LG = Light Gray
			CT = Custom		5W = 150° Type V Square		SG = Slate Gray
					5M = 90° Type V Medium		DG = Dark Green
					5N = 70° Type V Narrow		DP = Dark Platinum
					CD = Custom		GM = Graphite Metallic
							RAL = Custom RAL Match

Options	Options	Accessories
CL = Clear Lens	WHP3NP = 2' Cord w/o Plug, Stripped Pigtail	TLPC1 = Twist-Lock Photocell, 120-277V (Not Installed) (Requires N5P Receptacle)
DL = Frosted Lens	WHP7NP = 6' Cord w/o Plug, Stripped Pigtail	TLPC4 = Twist-Lock Photocell, 347/480V (Not Installed) (Requires N5P Receptacle)
CF = Custom	WHP11NP = 10' Cord w/o Plug, Stripped Pigtail	BLP-MVX = Back Light Lens Panel (Match Fixture Finish)
	SRG27710 = 10kA Surge Suppressor (Field Replaceable), 120-277V	GFX = Wireless DMX Lighting Control System (Consult Factory)
	SRG48010 = 10kA Surge Suppressor (Field Replaceable), 347-480V	GFM = Wireless Mesh Lighting Control System (Consult Factory)
	BPC1 = Button Photocontrol, 120-277V	FT = Decorative Finial Top (Available With 3T Mount Only)
	BPC3 = Button Photocontrol, 347V	FB = Decorative Finial Bottom (Available On PM Mount Only)
	BPC4 = Button Photocontrol, 480V
	N5P = NEMA 5pin Twist-Lock Receptacle
	MPS = Programmable Motion Sensor w/ ON/OFF + Dimming + Photocontrol, Bluetooth Settings Adjustable, maximum coverage of 100' diameter from 40' mounting height (Available On PM Mount Only) (Not Available With FB Finial Bottom)
